Hand Rail Column, Assembly
Program: Inventor
Class: 3D CAD
Year: 2026
Additional Images - click to enlarge
Project Objectives
- Demonstrate proficiency with Autodesk Inventor’s 3D part modeling and assembly tools

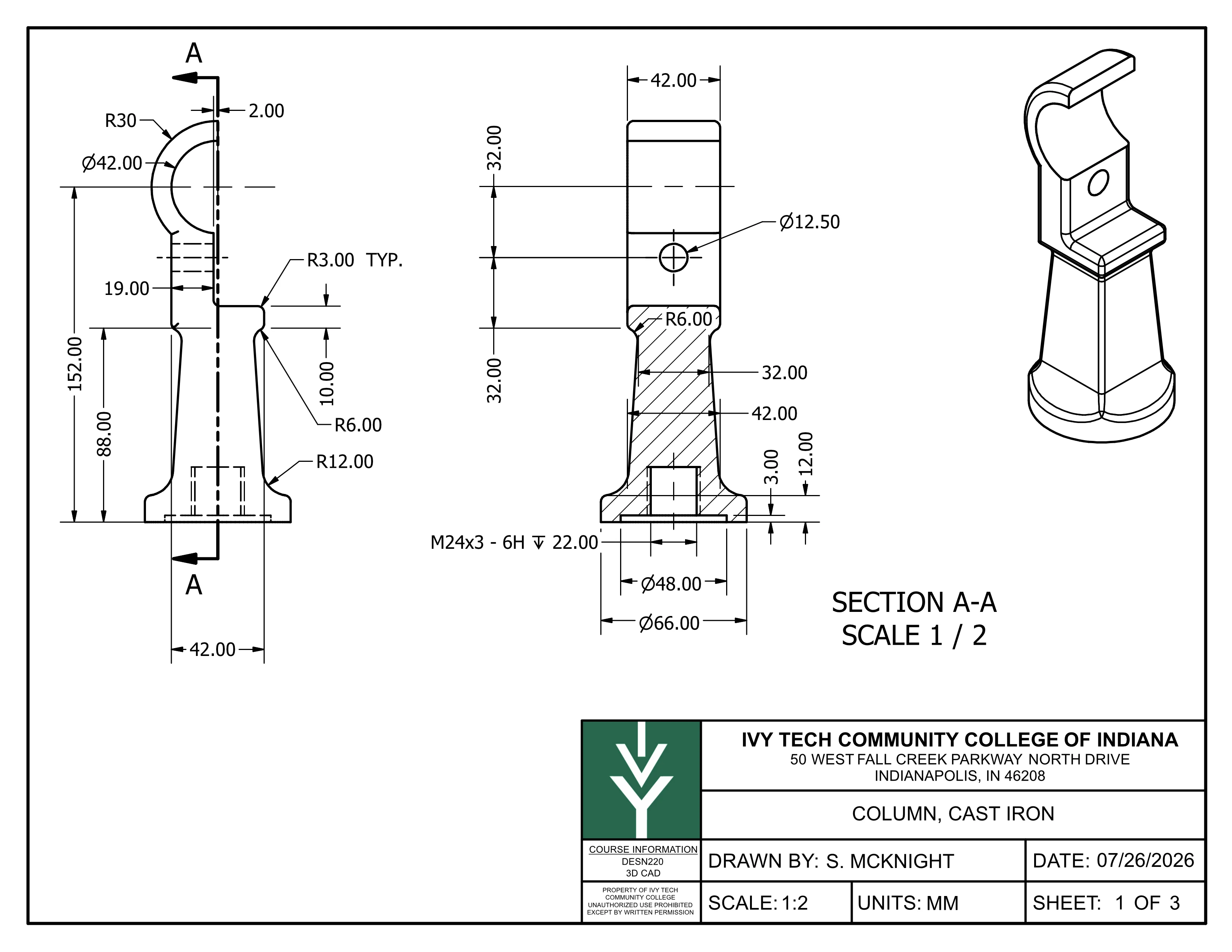

- Develop individual components from provided design specifications and assemble them into a complete hand rail column using appropriate Inventor constraints

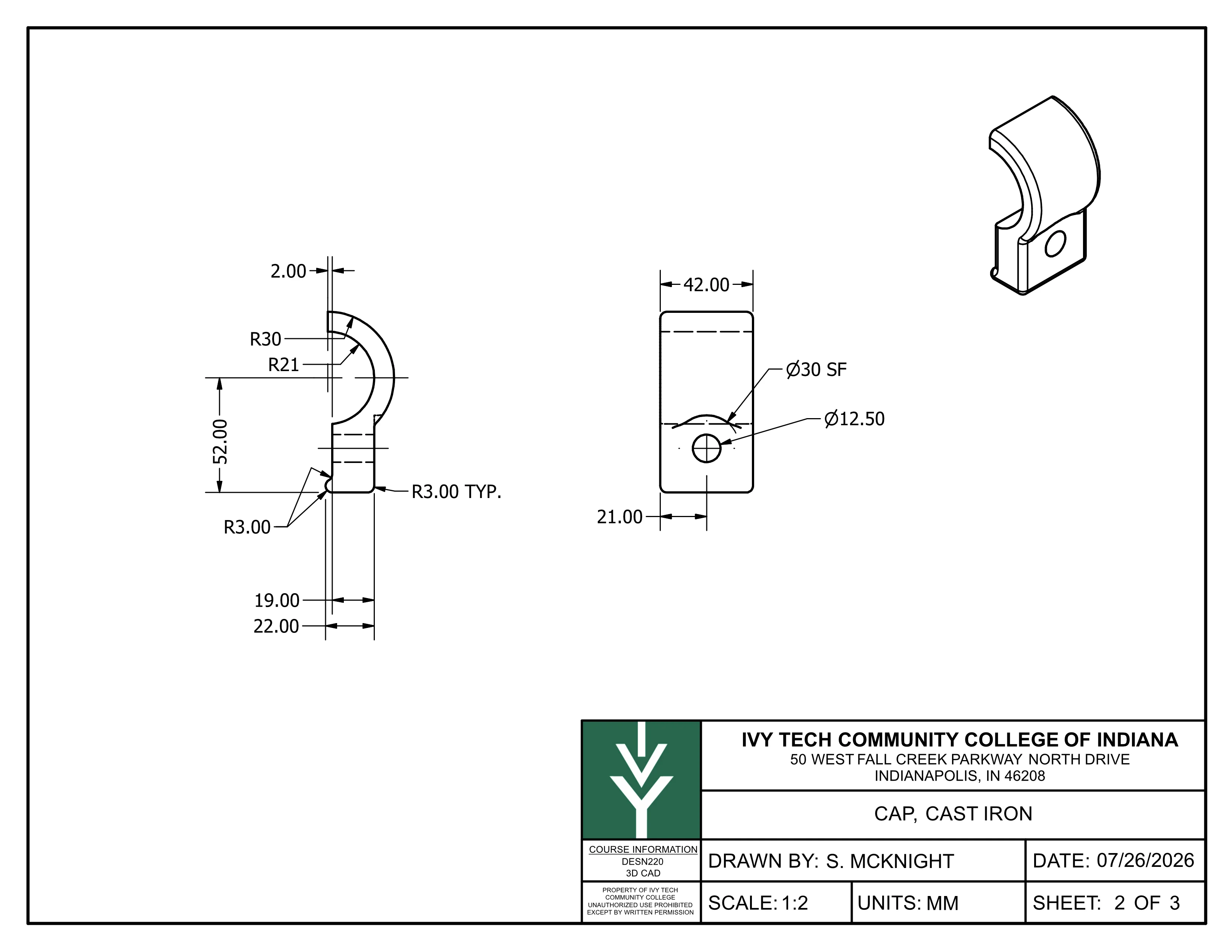

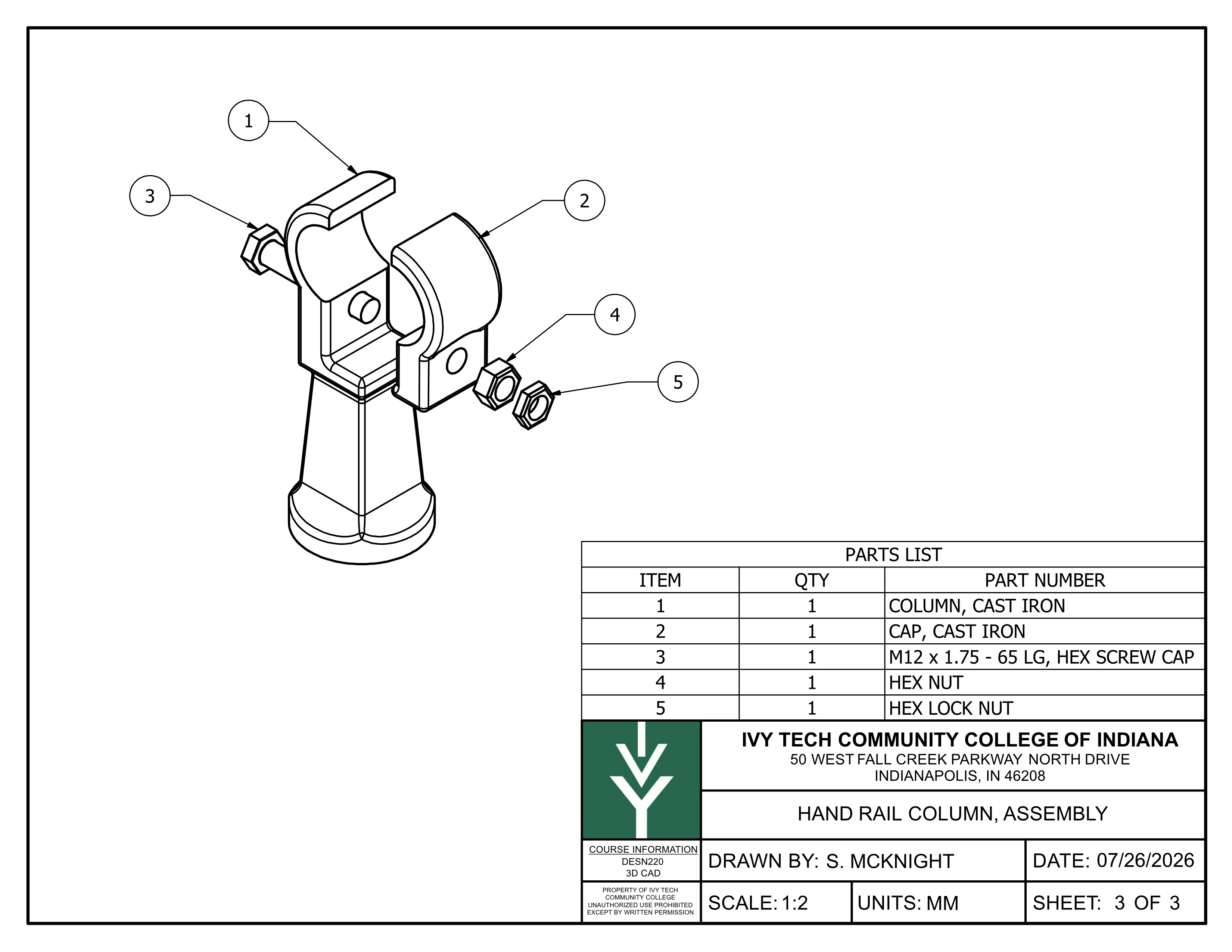

- Produce an assembly drawing that clearly communicates component relationships, dimensions, and hardware
- Apply appropriate technical drawing conventions to document the completed assembly
Project Overview
This project demonstrates the ability to develop individual 3D components, establish relationships between parts, and document a completed assembly through technical drawings.
